Classic M
Wall-mounted VC frame with cistern
Function:
Installation frame for wallmounted WC with cistern on masonry walls.
Features:
Epoxy-coated steel frame, height-adjustable to 180 mm, depth of structure with cistern max. 90 mm, distance between threaded rods 180mm or 230mm, certified for loads up to 400 kg.
Specifications:
Zinc-plated collar Ø 50 mm, zinc-plated collar Ø 110 mm, plastic reducer Ø 110 mm to Ø 90 mm, M12 threaded rods for ceramics mounting, plastic chain guard and caps, mounting material.

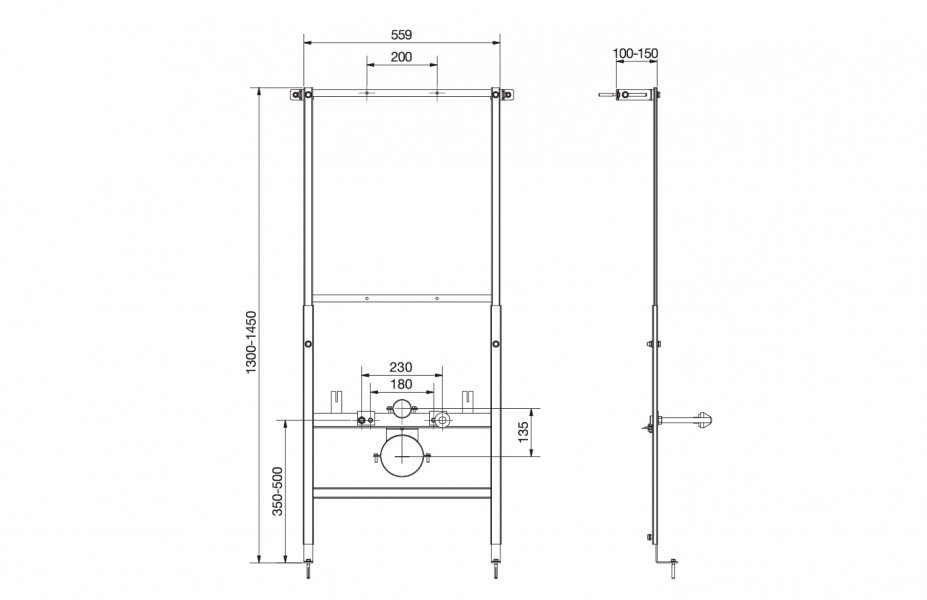

Technical data
|
Model: Classic M |
Model: Classic M |
Downloads
Product images
